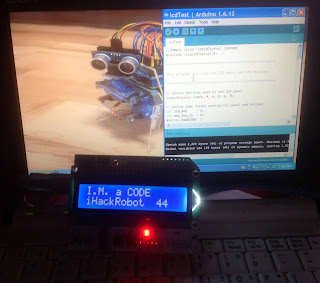

Project #40: Liquid Crystal Display Games
Arduino Sketch:
/* ===============================================================
Project: LIQUID CRYSTAL DISPLAY TEST
Author: J. B. Wylzan
Website: http://www.ihackrobot.blogspot.com
Abstract: How to test the buttons on an LCD Panel
================================================================== */
//Sample using LiquidCrystal library
#include <LiquidCrystal.h>
// select the pins used on the LCD panel
LiquidCrystal lcd(8, 9, 4, 5, 6, 7);
int lcd_key = 0;
int adc_key_in = 0;
#define btnRIGHT 1
#define btnUP 2
#define btnDOWN 3
#define btnLEFT 4
#define btnSELECT 5
#define btnNONE 0
// read the buttons
int read_LCD_buttons()
{
adc_key_in = analogRead(0); // read the value from the sensor
if (adc_key_in > 1000) return btnNONE;
if (adc_key_in < 50) return btnRIGHT;
if (adc_key_in < 195) return btnUP;
if (adc_key_in < 380) return btnDOWN;
if (adc_key_in < 555) return btnLEFT;
if (adc_key_in < 790) return btnSELECT;
return btnNONE; }
void setup()
{
lcd.begin(16, 2);
lcd.setCursor(0,0);
lcd.print("I.M. a piece of Code"); // print a simple message
}
void loop()
{
lcd.setCursor(12,1);
lcd.print(millis()/1000); // display seconds elapsed since power-up
lcd.setCursor(0,1); // move to the begining of the second line
lcd_key = read_LCD_buttons(); // read the buttons
switch (lcd_key)
{
case btnRIGHT:
{
lcd.print("RIGHT ");
break;
}
case btnLEFT:
{
lcd.print(adc_key_in);
lcd.print(" LEFT");
break;
}
case btnUP:
{
lcd.print("UP ");
break;
}
case btnDOWN:
{
lcd.print("DOWN ");
break;
}
case btnSELECT:
{
lcd.print("SELECT");
break;
}
case btnNONE:
{
lcd.print("TEST ");
break;
}
}
}
#include <LiquidCrystal.h>
// select the pins used on the LCD panel
LiquidCrystal lcd(8, 9, 4, 5, 6, 7);
int lcd_key = 0;
int adc_key_in = 0;
#define btnRIGHT 1
#define btnUP 2
#define btnDOWN 3
#define btnLEFT 4
#define btnSELECT 5
#define btnNONE 0
// read the buttons
int read_LCD_buttons()
{
adc_key_in = analogRead(0); // read the value from the sensor
if (adc_key_in > 1000) return btnNONE;
if (adc_key_in < 50) return btnRIGHT;
if (adc_key_in < 195) return btnUP;
if (adc_key_in < 380) return btnDOWN;
if (adc_key_in < 555) return btnLEFT;
if (adc_key_in < 790) return btnSELECT;
return btnNONE; }
void setup()
{
lcd.begin(16, 2);
lcd.setCursor(0,0);
lcd.print("I.M. a piece of Code"); // print a simple message
}
void loop()
{
lcd.setCursor(12,1);
lcd.print(millis()/1000); // display seconds elapsed since power-up
lcd.setCursor(0,1); // move to the begining of the second line
lcd_key = read_LCD_buttons(); // read the buttons
switch (lcd_key)
{
case btnRIGHT:
{
lcd.print("RIGHT ");
break;
}
case btnLEFT:
{
lcd.print(adc_key_in);
lcd.print(" LEFT");
break;
}
case btnUP:
{
lcd.print("UP ");
break;
}
case btnDOWN:
{
lcd.print("DOWN ");
break;
}
case btnSELECT:
{
lcd.print("SELECT");
break;
}
case btnNONE:
{
lcd.print("TEST ");
break;
}
}
}
