Leds Keypad Switch

How to build and control an LED on an Arduino using a keypad membrane:

by J.B. Wylzan

Project 18:  Leds Keypad Switch

This project  turns On and Off  4 leds using a Membrane Switch Keypad.

4X3 Matrix Keypad Configuration:

   ROW1 - Arduino pin 4
   ROW2 - Arduino pin 5
   ROW3 - Arduino pin 6
   ROW4 - Arduino pin 7
   COL1 - Arduino pin 8
   COL2 - Arduino pin 9
   COL3 - Arduino pin 10

*Note: These rows and columns can be changed anytime.


Block Diagram:

Hardware:
1 Keypad; 4x3 Matrix
4 leds
4 resistors
connecting wires
breadboard
Arduino R3 UNO board

Code # 18:
/*
  iHacklab Leds Switch Keypad
  powered by Arduino
  modified by Lawsinium

Note: Keypad Library for Arduino
Authored by  Mark Stanley, Alexander Brevig
Downloaded from http://playground.arduino.cc/Code/Keypad

  Turns On and Off leds using a keypad
  The example code is public domain.
 */

#include <Keypad.h>

const byte ROWS = 4;       // Keypad has four rows
const byte COLS = 3;        // Keypad has three columns
char key = 0;                       // Initializes a variable

// Define the Keymap
char keys[ROWS][COLS] = {
  {'1','2','3'},
  {'4','5','6'},
  {'7','8','9'},
  {'*','0','#'}
};

// Connect keypad’s pins to Arduino pins.
byte rowPins[ROWS] = { 4, 5, 6, 7 };
byte colPins[COLS] = { 8, 9, 10 };

// Keypad syntax
Keypad keypad = Keypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS );

//setup the pins' inputs and outputs void setup() {
  pinMode(4, INPUT);
 pinMode(5, INPUT);
 pinMode(6, INPUT);
  pinMode(7, INPUT);
   pinMode(8, INPUT);
    pinMode(9, INPUT);
     pinMode(10, INPUT);
      pinMode(2, OUTPUT);
       pinMode(3, OUTPUT);
       pinMode(11, OUTPUT);
       pinMode(12, OUTPUT);
}

void loop()
{
  key = keypad.getKey();     // get key
  pressKey('1', '2', 2);          // On = '1', Off = '2', pin = 2
  pressKey('3', '4', 3);          // On = '1', Off = '2', pin = 3
  pressKey('5', '6', 11);        // On = '1', Off = '2', pin = 11
  pressKey('7', '8', 12);        // On = '1', Off = '2', pin = 12
}
unsigned int pressKey(char on, char off, int output) {
  if(key) {
    if (key == on) {
      digitalWrite(output, HIGH);
    }
    if (key == off) {
      digitalWrite(output, LOW);
    }
  }
}
// end of the sketch


Challenge: Use Keypad to light an LED using a numerical password. If the password is invalid a red led lights up. If the password is valid, a green led lights up.

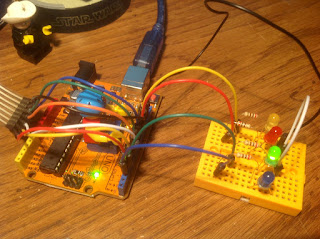

Actual Layout:

Procedure:
1. Build the prototype as shown above
2. Run the Arduino Interface
3. Select File > New
4. Copy Code #18 above
5. Paste Code #18
6. Click File > Save
7. Click Verify
8. Click Upload
9. Press any key to turn On and Off an Led.
