The iHacklab Runner

How to build Running Lights on an Arduino:

by J.B. Wylzan

Project 3:  Running Lights:

This project turns on the 9 Leds from left to right repeatedly.

Hardware:
9 LEDs
9 resistors
connecting wires
breadboard
Arduino R3 UNO board

Schematic Diagram:

image created by fritzing

Block Diagram:

image created by fritzing

Code # 3:
/*
  iHackLab  Running Lights
  powered by Arduino
  sketched by J.B. Wylzan
  modified by Lawsinium

  Turns LEDs On and Off from left to right repeatedly.
  This example code is public domain.
 */

 // Setup pins 4 to 12
void setup()
 {
  pinMode(4, OUTPUT);
  pinMode(5, OUTPUT);
  pinMode(6, OUTPUT);
  pinMode(7, OUTPUT);
  pinMode(8, OUTPUT);
  pinMode(9, OUTPUT);
  pinMode(10, OUTPUT);
  pinMode(11, OUTPUT);
  pinMode(12, OUTPUT);
 }

// Turns LEDs On and Off from left to right repeatedly,
void loop()
{
  digitalWrite(4, HIGH);   // turn the LED on
  delay(500);
  digitalWrite(4, LOW);    // turn the LED off

  digitalWrite(5, HIGH);   // turn the LED on
   delay(500);
  digitalWrite(5, LOW);    // turn the LED off

  digitalWrite(6, HIGH);   // turn the LED on
  delay(500);
  digitalWrite(6, LOW);    // turn the LED off

  digitalWrite(7, HIGH);   // turn the LED on
   delay(500);
  digitalWrite(7, LOW);    // turn the LED off

  digitalWrite(8, HIGH);   // turn the LED on
  delay(500);
  digitalWrite(8, LOW);    // turn the LED off

  digitalWrite(9, HIGH);   // turn the LED on
  delay(500);
  digitalWrite(9, LOW);    // turn the LED off

  digitalWrite(10, HIGH);   // turn the LED on
  delay(500);
  digitalWrite(10, LOW);    // turn the LED off

  digitalWrite(11, HIGH);   // turn the LED on
  delay(500);
  digitalWrite(11, LOW);    // turn the LED off

  digitalWrite(12, HIGH);   // turn the LED on
  delay(500);
  digitalWrite(12, LOW);    // turn the LED off

}

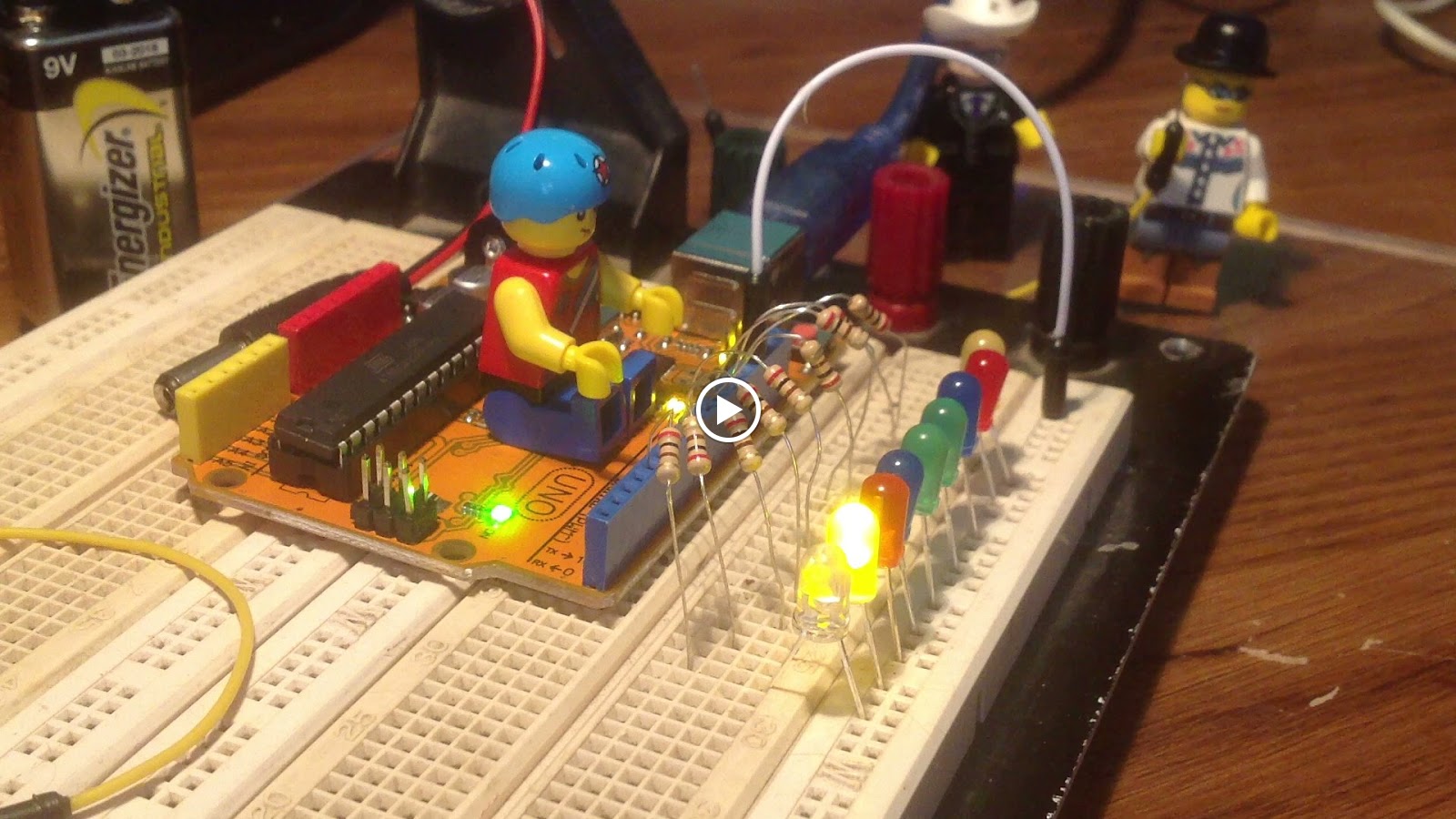

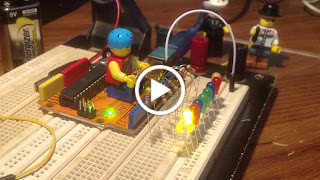

Actual Layout:

Procedure:
1. Use the same prototype as shown above
2. Run the Arduino Interface
3. Select File > New
4. Copy Code #3 above
5. Paste Code #3
6. Click File > Save
7. Click Verify
8. Click Upload
9. The 9 leds will turn On and Off from left to right repeatedly
